Advanced-Progress-Bars

This plugin extends obsidian to allow you to create custom progress bars by using a simple markdown code block.

If you find value in this plugin and would like to support us, please consider using our ko-fi

Installation

Installing via Obsidian

• Navigate to Settings -> Community Plugins -> Browse and then search for Advanced Progress Bars.
• Now select the Advanced Progress Bars plugin and click the install button.
• Remember to activate the plugin by going to Settings -> Community Plugins -> Installed Plugins and toggling the APB plugin on.

Manual Install

• Find the latest release from
  https://cactuzhead.github.io/Advanced-Progress-Bars/
  and download the files (main.js, manifest.json and styles.css).
• Navigate to your vault’s plugin folder
  [your vault]/.obsidian/plugins
  and create a new folder called
  advanced-progress-bars.
• Copy the downloaded files into this new folder.
• Reload Obsidian.
• Remember to activate the plugin by going to Settings -> Community Plugins -> Installed Plugins and toggling the APB plugin on.

Obsidian Settings

Usage Example Code Block

To insert an Advanced Progress Bar into Obsidian, you use a fenced code block similar to the one below.

```apb
My Title: 57/100
```

In the apb code block, you define the attributes as Title: Value / Total.

The percentage will be automatically calculated based on your Value and Total.

Note: the text within the code block example on the settings page will automatically be updated to reflect the changes you make in the other settings.

Hotkey Setup

To make it more convenient, you can add a hotkey that automatically inserts a progress bar code block into Obsidian. Simply follow these steps:

1. Open Obsidian and go to the Settings by clicking the gear icon in the bottom left corner.
2. From the Settings menu, go to the Hotkeys section on the left sidebar.

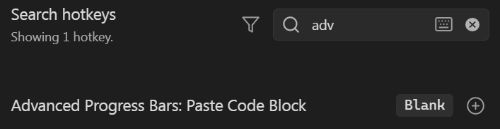

3. In the filter search bar found at the top of the Hotkeys section, start typing “Advanced Progress Bars” to find the Advanced Progress Bars: Paste code block action.

4. Click on the round plus button next to the found action, and assign the desired hotkey combination (e.g., Ctrl + Shift + B or any other combo that suits you).

Copy to Clipboard

Instead of manually typing the code block, or setting up a hotkey, you can use the Copy to Clipboard button, found at the top of the APB settings page to quickly copy it for later pasting into Obsidian.

Refreshing Notes After Changes

To see the changes you’ve made in the settings reflected in your notes, you may need to switch back and forth between notes or alternatively, reload Obsidian to refresh the active note.

However, if a new progress bar is added to a note, it will display correctly, even if the existing progress bars on the same page haven’t been refreshed yet.

Note, This will only be a problem directly after you make changes to the settings.

Multiple Advanced Progress Bars

You can also stack progress bars by adding additional bars within the same code block, see example below.

```apb
My Title: 57/100
Smaller Total: 2/7
Very Large Total: 2034/2345
```

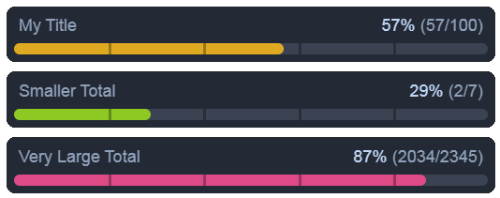

The above stacked bars example would be rendered like this (using default dark colors & settings)

Note: The code block example on the settings page will only include one progress bar. You will need to manually add any additional progress bars once pasted into Obsidian.

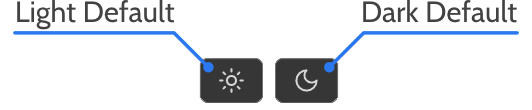

Light & Dark Settings

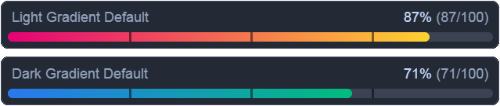

These two buttons (Light & Dark) will change ALL the color settings to their respective defaults. All other settings will remain unchanged.
Note: once selected, all previous colors will be lost forever and can not be retrieved.

Progress Bar Settings

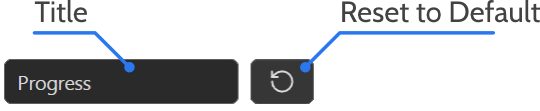

Default Title

You can use this to setup your default progress bar title. By clicking the Reset to Default button this will change the title back to Progress. If you change this, the Title will be automatically changed in the example code block at the top of the settings for easy copy and pasting later on.

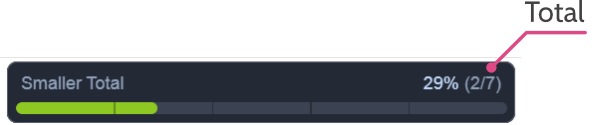

Default Total

This setting is used to set the total you want for your default progress bar. This is does not need to be set to 100 (as in percentage). For example, you could set it to 7 if you are tracking seven subtasks.

Progress Percentage

This slider is used to change the percentage of the demonstration progress bar found near the top of the settings. It is meant as an aid so you can see how your progress bar will look with different settings.

Additionally, it is also changes the Value in the Example Code found at the top of the settings.

If you want to use the example code block’s Copy to Clipboard feature or a hotkey to later paste into obsidian, then you would probably want this to be set to 0.

It is recommended that you do this after you are happy with all the other settings and no longer need to see the demonstration progress bar.

Full Width

If this is toggled on, then the entire progress bar will expand to fill the width of its container.

If toggled off then a new Width setting will appear below this setting.

The new Width setting will allow you to enter in a number to fix the width of the progress bar (in pixels).

This is particularly useful when displaying a progress bar on a full-screen note, as a flexible width without a fixed limit can cause the progress bar to stretch excessively.

Height

This slider allows you to set the height of the progress bar from a range of 1 to 15 pixels.

Pressing the Reset to Default button changes this value back to 8 pixels tall.

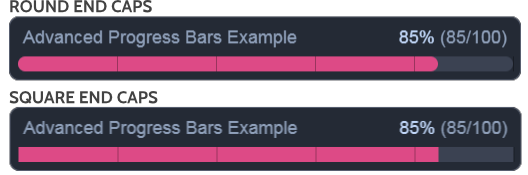

Round End Caps

If this is toggled on, then the progress bar (and its background) will have rounded ends. Toggling it off will change them to square ends.

Section Mark Settings

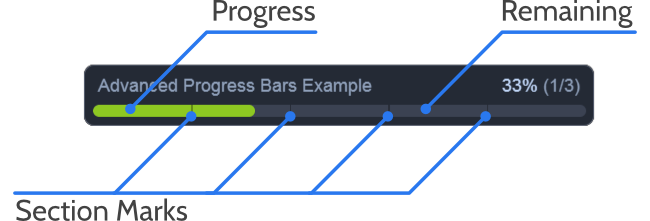

Section Marks

If this is toggled on, the progress bar will automaticlaly have equally spaced vertical markers along its length. The following table shows how many marks will be displayed depending on the Number of Colors setting (located further down on the settings page).

Number of Colors	Number of Marks
1	0
2	1
3	2
4	3
5	4

Note: if you have 1 color selected, you will by default, not see any markers.

Automatically Assigned Marks

If this is toggled on, the progress bar will automaticlaly have equally spaced vertical markers along its length - as described above.

However, if you want to manually overide this behavior to choose the number of equally spaced marks along the progress bar then, toggle this setting off.

If you do so, a new slider will apear underneath to allow you to set the number of marks you wish to be used.

Number of Marks

If you have the Automatically Assigned Marks toggle in the off position (as described above), you can use this slider to pick exactly how many vertical marks you want evenly distributed along your progress bar.

Note: this overrides the automatically assigned system

Section Mark Color

This setting defines the color of the vertical section markers.

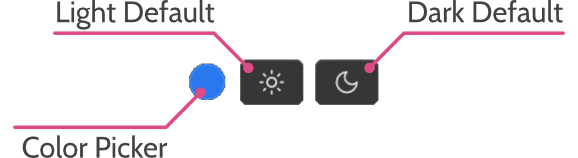

Use the colorpicker to select a custom color or alternatively, use one of the Light or Dark defaults by pressing the appropriate buttons.

Note: the color selected will automatically be set to 50% transparency, allowing the progress bar’s color to blend and influence the final appearance.

Section Mark Width

This is a slider to set the width of each marker from a range of 1 to 5 pixels. Pressing the Reset to Default button changes this value back to 3 pixels wide.

Text Settings

There are four pairs of settings which relate to Title, Percentage, Fraction (value/total) and Completed Text.

If you toggle each text item on, it will display that particular text on your progress bar (see image above).

The completed text will be displayed over the top of the progress bar, and will only be shown when it reaches 100%.

(as always, you can see what it will look like by viewing the demo progress bar near the top of the settings.).

Using the accompanying color settings will allow you to pick your desired custom color for each of the four text items.

Alternatively, you could use one of the Light or Dark defaults by pressing the appropriate buttons.

Override Error Warning

Typically, when your Value exceeds the Total, this error will appear to help you identify and correct any mistakes while editing the Value.

However, there may be instances where you would prefer the ability to exceed 100%, and this is where this setting proves useful.

When you toggle on the Override large value error, APB will no longer display an error if the Value exceeds the Total.

Additionally, a second setting will appear, allowing you to customize the color of the percentage text once it exceeds 100%.

As usual, there are two defaults Light and Dark or select a custom color using the colorpicker.

As shown in the image above, the percentage text changes color and now displays values exceeding 100%.

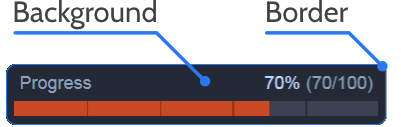

Container Settings

Similar to the text settings above, this section includes two pairs of options for customizing the Border and Background of the container.

Progress Bar Color Settings

Here, you will find all the available color options for customizing the progress bar.

Number of Colors

This drop-down selection allows you to define how many different colors the progress bar will use.

So for example, if you have 3 colors selected, the bar will change color every time it hits the next 33% of progress.

What this means is that when the Value is between 0 and 33% the entire bar will be colored the same as your 1st Color setting, and when it is between 34 and 66% it will be your 2nd Color, and between 67 and 99%, your 3rd Color.

Number of Colors	Marks	Size of Section
1	0	100%
2	1	50%
3	2	33%
4	3	25%
5	4	20%

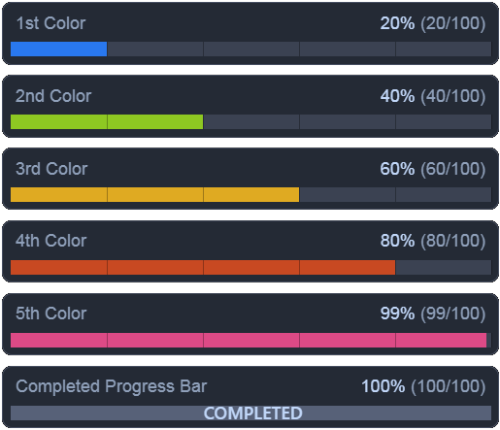

In the image below, you’ll see another example showcasing how this works with the maximum of 5 colors and the marks toggle enabled for clearer definition.

As the percentage increases, the entire bar will change to the color you’ve set for each of the 5 color settings, updating every 20% increment.

When your progress bar reaches 100%, it will change to the color specified in the Completed Color setting. In this example, you’ll also see the COMPLETED text, which has been set using the text settings mentioned earlier.

Note that your Title will not change once set - the titles in the above image where only manually changed to better explain what was happening.

Gradient

If you set the Number of colors to 1 color, this new gradient option will become visible.

When toggled on, you will see one toggle and two additional color settings appear underneath.

The Gradient Type allows you to select between a color-mixed linear gradient and a simple linear gradient.

The color-mixed linear gradient smoothly transitions between two colors (settings below) from 0% to 100%. The progress bar displays this gradient, shifting from the primary color to a blended shade based on the completion percentage.

In contrast, the simple linear gradient always applys the full gradient of colors, but will stretch and squash it depending on the completion percentage of the progress bar.

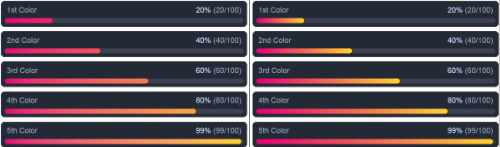

In the above image examples, the left gradients are the color-mixed linear gradient and the right ones are the simple linear gradient.

The Primary Gradient is used to set the left color of the gradient, whilst the Secondary Gradient is used to set the right color.

Each has two default buttons for Light and Dark colors, or you can alternatively use the colorpicker to select any color you wish.

Completed Color

This color is what the progress bar will be when it has reached 100%. You can see in the image above, that the bottom completed progress bar is using the default Dark option which is a light blue-grey color.

Bar Background Color

This is the color for the remaining portion of the progress bar. In this example it is a mid blue-grey color.

Tasks Settings

Here, you will find all the available options for customizing the progress bar when using tags to link to tasks.

Enable Task Linking

When toggled on, progress bars can use tags to link to matching tags in your tasks. This results in your progress bar automatically tracking tags to display your current task completion.

Normally your code block would look something like this:-

```apb
My Title: 57/100
```

To add a tag to your progress bar, you add a hastag to the end of your Title, followed by your tag name.

```apb
My Title#orange: 57/100
```

As you can see in the image below, the tag will be displayed as a badge to the left of your Title.

Note: If there is at least one matching tag in your tasks, APB will automatically find them, and change your Value/Total in the code block. You do not need to manually edit the code block once setup.

So the previous code block example above, will now automatically be changed to somthing like this:-

```apb
My Title#orange: 1/2
```

In the example above, the tag is #orange (all lowercase) and is added to the end of your Title (but before the colon).

Add Tags to Tasks

Now simply add the same tag to the end of each top task you want to link to this progress bar.

- [x] Task 1 #orange
  - [ ] Subtask 1
  - [x] Subtask 2
    - [ ] Sub Subtask 1
- [ ] Task 2 #banana
- [ ] Task 3 #orange

In the example above, there are a total of 3 top tasks and 3 subtasks (1 of which is a sub-subtask).

The #orange progress bar would see 2 linked top level tasks (task 1 and task 3) and it would see that one of those was completed, so your progress bar would therefore be set to 50% (1/2).

Note: your tags are case sensative so you need to exactly match your tags for APB to link them. You can use any case and even numbers if you wish.

If you add a tag to your progress bar and it does not match any task tags, you will see an error saying (in this example) #orange not found.

Note: if you see this error, the progress bar’s data may be incorrect and will not update as it is not correctly linked.

Other tags

If you add tags to your subtasks (or sub-subtasks, etc) they will be ignored by APB.

Track More than One Tag

In the Add Tags to Tasks example above, you will notice there are 3 top tasks, two of which are tagged with #orange. However there was also one top task that was tagged with #banana.

This #banana tag was ignored by the progress bar which was looking for #orange tags. You can however (if you desire) add a second progress bar, and give it the #banana tag so it will track all #banana top tasks.

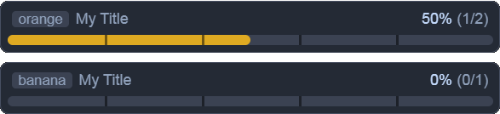

In the image above, both #orange and #banana are being tracked automatically.

And you can track as many tags as you wish by simply adding additonal progress bars with a new tag for each.

Tag Badge Colors

Once you toggle the task linking setting to on, two additional color settings will appear underneath.

Task Text Color is used to set the color of the tag badge’s text, whilst the Task Background Color is used to set the background color of the tag badge.

Sub Tasks

In addition to the color settings mentioned above, you should also see a new toggle option called Enable Sub-Task Linking.

When toggled on it should reveal two further color settings underneath it.

These are used to change the text color of the sub tasks, with one being used after you have completed all sub tasks.

As with all color settings, there are Light and Dark buttons to set default colors - or choose your custom color from the colorpicker.

If you activate the sub task toggle, APB will keep a count of all subtasks of your top level tasks and display it in text form underneath your progress bar.

- [x] Task 1 #orange
- [ ] Task 2 #banana
  - [x] Subtask 1
    - [ ] Sub Subtask 1
- [ ] Task 3 #orange
- [ ] Task 4 #banana
  - [ ] Subtask 1

So for the tasks example above, you will see a sub task count for #banana that will be 1/3 as there are a total of three sub tasks (or sub-subtasks), one of which is completed.

As you can see in the image below, if you complete all sub tasks for the specified tag, your text will change color and add the word COMPLETED after it.

Note: subtasks do not require tags themselves, they will be counted according to their top tasks tag. If you do add tags to subtasks, they will be totally ignored by APB.

Subtask Code Block

For APB to track your subtasks, it adds additional data to the end of the My Title#Tag in your code block.

```apb
My Title#banana~2/4: 0/2
```

As you can see in the example above, there is a ~2/4 placed directly after the #banana tag. This is simply the Value/Total for subtasks of your progress bars tag, and is automatically added by APB.

Note: For task linked progress bars - it is not recommended that you make any changes manually to the code block apart from the Title or #tag as it will be overwritten when APB refreshes the data.

Refreshing

If you have Enable Task Linking turned on the progress bars will update when you change between notes. This can be used to “manually” make sure that notes are refreshed and up-to-date.

Additionally, APB will refresh automatically after you make changes to either the liniked progress bar code block or the tasks themselves. For performance and user experience reasons, it will only update 2 seconds after it detects a change.

Note: if you are not going to be using tags to keep track of your task progress, then it is highly advised to turn off the Enable Task Linking for a smoother and efficient experience.

Using in Dashboard++

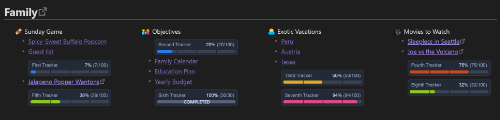

Dashboard++ (aka DashboardPlusPlus) is a CSS snippet that provides a homepage for organizing and navigating notes. You can find it at https://github.com/TfTHacker/DashboardPlusPlus

If you want to incude progress bars into the columns of your Dashboard++ page, you can not use a standard APB code block. However, there is a workaround detailed below.

Progress Bar in Columns

You normally insert a progress bar by pasting in the standard APB code block which may look something like this:-

```apb
My Title: 57/100
```

You can still do this on the page, but it will not be able to be placed inside columns (as a list item).

Instead, if you want to place them in the columns (as a list item) you will have to use a workaround by simply omitting the last three backticks so that it looks like this:-

- ```apb
My Title: 57/100

As shown in the example above, the code block omits the closing backticks and begins with a hyphen and space to format it as a list item.

Note: tag linking for tasks and sub-tasks do not work on Dashboard++ pages only simple manually edited progress bars work.

In earlier versions, this workaround worked, but starting with release 1.0.8, I have refined it to hide the list bullet for progress bars, resulting in a cleaner, more polished look (see image below).

Now, you can effortlessly place simple progress bars anywhere in column lists without a list bullet on the left, enhancing visual clarity.
