Usage Example Code Block

To insert an Advanced Progress Bar into Obsidian, you use a fenced code block similar to the one below.

```apb
My Title: 57/100
```

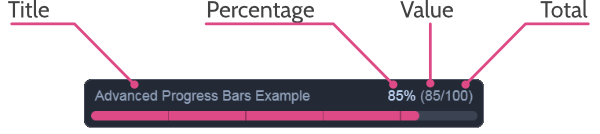

In the apb code block, you define the attributes as Title: Value / Total.

Text Diagram

The percentage will be automatically calculated based on your Value and Total.

The text within the code block example on the settings page will automatically be updated to reflect the changes you make in the other settings.

Hotkey Setup

To make it more convenient, you can add a hotkey that automatically inserts a progress bar code block into Obsidian. Simply follow these steps:

  1. Open Obsidian and go to the Settings by clicking the gear icon in the bottom left corner.
  2. From the Settings menu, go to the Hotkeys section on the left sidebar.

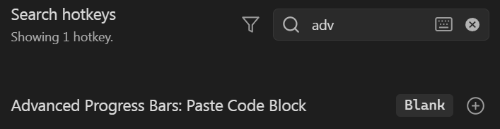

  3. In the filter search bar found at the top of the Hotkeys section, start typing “Advanced Progress Bars” to find the Advanced Progress Bars: Paste code block action. Hotkey Search

  4. Click on the round plus button next to the found action, and assign the desired hotkey combination (e.g., Ctrl + Shift + B or any other combo that suits you). Hotkey

Copy to Clipboard

Instead of manually typing the code block, or setting up a hotkey, you can use the Copy to Clipboard button, found at the top of the APB settings page to quickly copy it for later pasting into Obsidian.

Refreshing Notes After Changes

To see the changes you’ve made in the settings reflected in your notes, you may need to switch back and forth between notes or alternatively, reload Obsidian to refresh the active note.

However, if a new progress bar is added to a note, it will display correctly, even if the existing progress bars on the same page haven’t been refreshed yet.

This will only be a problem directly after you make changes to the settings.

Multiple Advanced Progress Bars

You can also stack progress bars by adding additional bars within the same code block, see example below.

```apb
My Title: 57/100
Smaller Total: 2/7
Very Large Total: 2034/2345
```

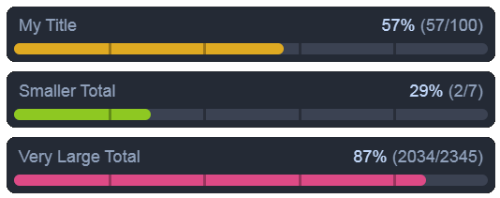

The above stacked bars example would be rendered like this (using default dark colors & settings)

Stacked Bars

The code block example on the settings page will only include one progress bar. You will need to manually add any additional progress bars once pasted into Obsidian.
