Templates Extended NEW v1.1.4

Starting in release 1.1.4, you now have the additional ability to have per template color settings for the container, text, sub task text and progress bar.

This update removed a lot of the default settings from the main settings and moved them to the templates.

For information about the original template system settings created before this update, please visit our Templates page.

Edit Extended Colors

You should see a small change to the the existing template system.

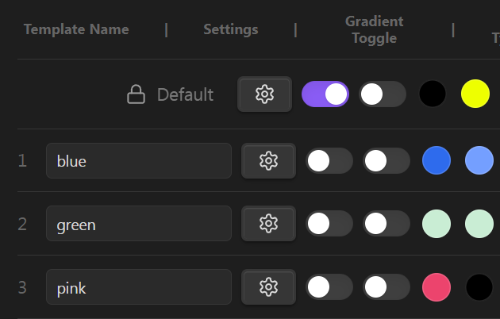

Now, the default template and all custom templates should have a small settings button to the right of their template name.

This button once clicked will expand to show you 21 additional color settings for greater versatility of your Advanced Progress Bars.

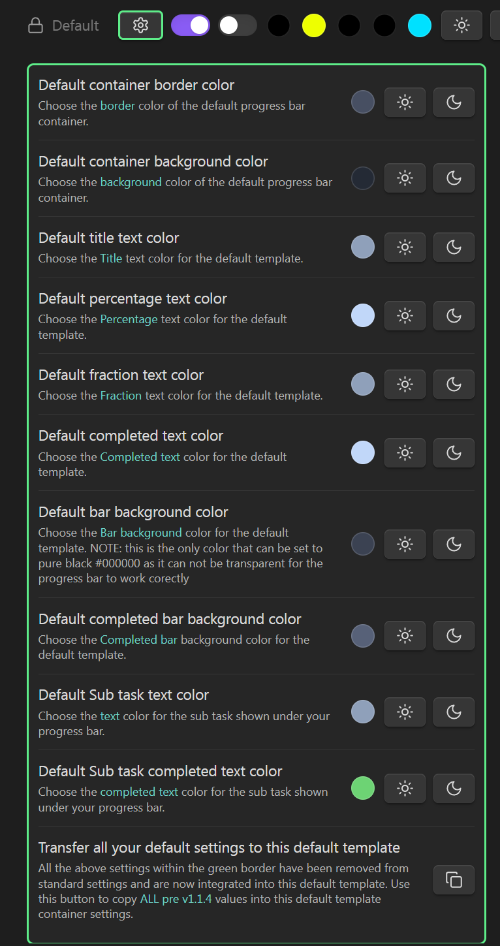

The default template when expanded, will be highlighted by a green border around the new extended settings panel as well as the settings button itself.

You can open and close this panel at any time by pressing this button.

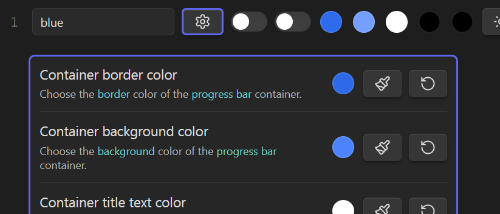

All custom templates will be differentiated from the default settings by using a blue border to highlight their settings instead of the default’s green.

The panel will stay open (visible) until you either close it or you view another templates extended panel. This was done so you don’t get confused about which template the panel belongs to.

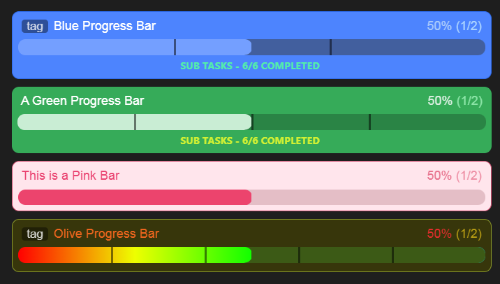

Colors

Each color setting within the default extended panel has a light and dark button so that you can set it to a default light or dark color.

It is slightly different in the custom templates extended panel, as each color setting instead has a reset to default color and reset to pure black buttons.

This gives you a quick way to copy the currently set default color or to hide/not display the related item by settting to #000000.

However as always, you can use the color picker to set it to any color you desire for your default and custom templates.

Transfer previous default colors

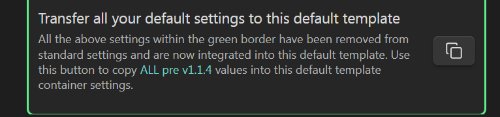

At the bottom of the default extended settings panel is an additional unique button which will transfer all of your previous colors to the default template.

You should only need to use this once, however, if in the future you change your defaults you can use this again to return to your original v1.1.3 default colors.

Turning off & on

Instead of using a toggle to turn on or off a particular setting as was previously done prior to v1.1.4 you can simply set your color to pure black #000000 this will tell APB to not display this particular setting (or make it invisible).

The only setting that you can not switch off or make transparent is the Bar background color as it is required to be a color for the progress bar to work correctly.

This is why it the only color setting that allows you to use pure black #000000.

Prefix and suffix

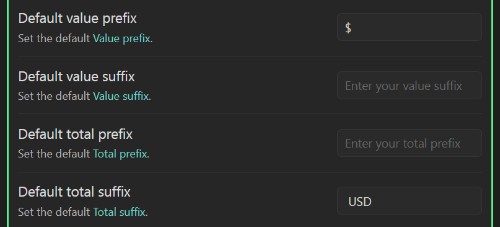

With release v1.2.0 you now have Prefix and Suffix settings in the extended templates panel. This means you can now have a per template prefix and suffix for both the value and the total.

These will be added before and/or after your progress bars value and total.

Examples of a prefix could be a currency like $, £ and € or your suffix could be something like days, kg or miles.

The prefix and suffix will be directly next to the value and total numbers so in some cases you may wish to add a space after a prefix or a space before a suffix to seperate the number from them.

Assigning unique per template prefixes and suffixes to the value and total of your progress bar provides remarkable versatility, allowing for tailored and visually striking designs.

You can leave a prefix or suffix blank and they will not affect your layout, or you can even just use a space if you want to seperate items.

Dates color & format

You can set a custom color for the Dates color text and the Days left text.

This text is shown below your progress bar as seen in this image below.

You can additionally set the date format that you wish these dates to use by using the Enable USA date format toggle.

When toggled on, your dates will be in the format Dec 31, 2025 and when you toggle it off 31 Dec 2025 will be the format used.

Number of marks

You can manually override the number of evenly spaced marks along the progress bar with this setting, to a maximum of 19. This means you can have a maximum of 20 sections along your progress bar.

If you set the slider to 0, your progress bar will have no marks at all.

And if you want the progress bar to use the default automatically calculated value that you set up in the Section marks part of the settings, then you can set this slider to -1 for the defaults to work.

End cap style

You can now set the style of your end caps per template rather than a global setting.

When toggled on, the progress bar will have a round end cap and when toggled off it will have a square end cap.

Bar height

Each template now supports a customizable bar height, adjustable via a slider ranging from 1px to 15px, with a default value of 8px.

Overage percentage text color

This is another new per template setting which changes the color of the percentage text if it exceeds the total.
